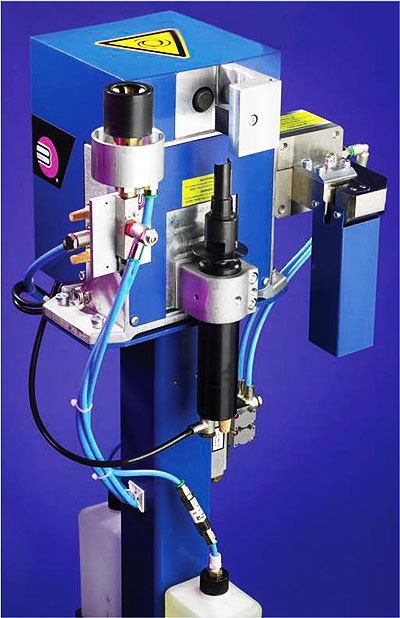

The TCS-PP "Plug and Play" torch cleaning station offers the complate solution for reliable, automatic servicing of the torch neck. Combined in a single station, the 3 point clamping system guarantees optimally timed processes and an increase in available floor space. A number of other features such as a mounting stand and drip pan reduce installation costs.
Precise and effective cleaning for almost all robot welding torches.
Proven and trusted cutter principle, suitable even for heavy spatter adhesion.

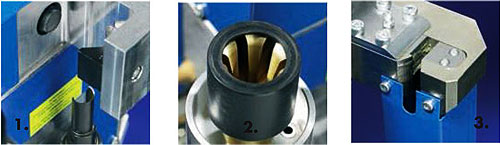

3-point clamping of the gase nozzle fixes the torch in place during the cleaning process.
Direct, economical spraying of all anti-spatter fluid reduces welding spatter adhesion and extends service intervals.
Clean environment thanks to encapsulated spraying nozzle and collecting pan for dirty residual oil.
Simple disposal of residual oil and replenishment of the anti-spatter agent by simply exchanging bottles.
The combined clamping and shearing action guarantees precise cutting quality and ensures optimum arc-start properties as well as exact TCP measurement.
Long service life thanks to a sturdy design.
