MIG/MAG-Fume Extraction Torches "RAB Plus"

air and liquid cooled

fume extraction torches

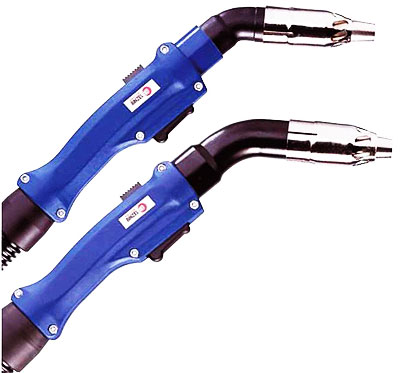

MIG/MAG-Fume Extraction Torches RAB Plus

fume extraction

RAB Plus-Fume Extraction Torches are 100% compatible with the high vacuum extractor FES-200. Appropriate connections pieces are available as standard equipment of the FES-200.

Advantages of RAB troches at a glance :

red_btn Direct extraction at the arc - ensures permanent protection of the welder's respiratory system

red_btn Easy installation in all existing MIC/MAG work stations

red_btn Small extraction tube diameter - better accessibility

red_btn Aluminium extraction tube - considerable weight saving

red_btn Handle with extraction control and swivel joint - optimized handling

red_btn Smaller diameter extraction hoses for all types - lower handling weight, optimum flexibility

Technical data :

fume extraction data
